Documents Download Selected Email Selected

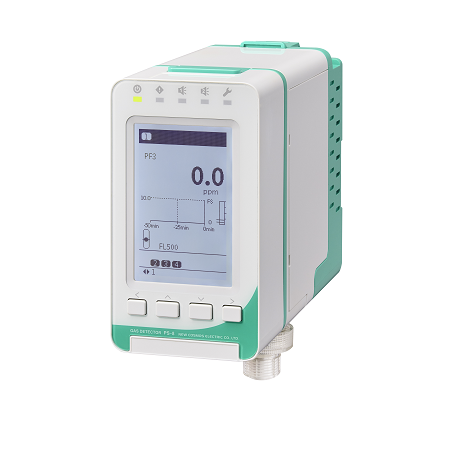

PS-8M Single-Point Gas Detector (Standard Main Unit) The versatile PS-8 Single Point Gas Detector monitors a wide range of toxic and combustible gases, as well as oxygen depletion. This reliable system employs electrochemical, hot-wire and galvanic detection principles utilizing gas-specific sensors.
The PS-8 offers over 125 designed gas calibrations with measurements in PPB, PPM, % LEL and O2 volume. The device can extract a sample from up to 75 feet away with a robust pump lasting up to seven years. Add a compact and reliable low-temperature pyrolyzer for NF3 monitoring.
A vast selection of replaceable gas sensors are available. The PS-8 uses the same quality, interchangeable sensors as its predecessor (PS-7), which can distinguish between combustibles.
Click here to view and order PS-8 replacement sensors .
The PS-8 is compatible with the EC20x Multipoint Gas Detector Cabinet for customizing a complete TGMS. Please contact us to review more factory-installed options.
Sensors Choose an Option... PS-7 Acetic Acid Sensor, 0-2000 ppm [CHS-7-F2K60] ( $851.00 ) PS-7 Acetone Sensor, 0-2000 ppm [CHS-7-F2W60] ( $851.00 ) PS-7 Acetone Sensor, 0-5000 ppm [CHS-7-F2W40] ( $851.00 ) PS-7 Acetonitrile Sensor, 0-5000 ppm [CHS-7-F2Z40-CH3CN] ( $851.00 ) PS-7 Acetylene Sensor, 0-2000 ppm [CHS-7-F2F60-C2H2] ( $729.00 ) PS-7 Acetylene Sensor, 0-5000 ppm [CHS-7-F2F40-C2H2] ( $729.00 ) PS-7 Acetylene Sensor, 0-100%LEL [CHS-7-C2F10-C2H2] ( $729.00 ) PS-7 Ammonia Sensor, 0-100 ppm [CDS-7-7BNH56] ( $243.00 ) PS-7 Arsine Sensor, 0-0.25 ppm [CDS-7-07AH76] ( $243.00 ) PS-7 Benzene Sensor, 0-200 ppm [CHS-7F8Z90-C6H6] ( $729.00 ) PS-7 Butadiene Sensor, 0-5000 ppm [CHS-7-F2I40-C4H6] ( $851.00 ) PS-7 Butyl Acetate, 0-2000 ppm [CHS-7-F2Z60BA] ( $851.00 ) PS-7 Carbon Monoxide Sensor, 0-100 ppm [CDS-7-07CO56] ( $243.00 ) PS-7 Chlorine Sensor, 0-5 ppm [CDS-7-7BCL16] ( $243.00 ) PS-7 Chlorine Non-Standard Range Sensor, 0-10 ppm [CDS-7BCL20] ( $243.00 ) PS-7 Chlorine Sensor, 0-1.5 ppm [CDS-7-7BCLK0] ( $243.00 ) PS-7 Chlorine Trifluoride Sensor, 0-1 ppm [CDS-7-07CF00] ( $243.00 ) PS-7 Chlorobenzene Sensor, 0-500 ppm [CHS-7-F5R50-CB] ( $851.00 ) PS-7 Chloroform Sensor, 0-2000 ppm [CHS-7F5Z60-CHCl3] ( $851.00 ) PS-7 Chlorodifluoromethane (R22) Sensor, 0-2000 ppm [CHS-7-F5R60-CHClF2] ( $851.00 ) PS-7 Diborane Sensor, 0-0.5 ppm [CDS-7-7BBH86] ( $243.00 ) PS-7 Dichlorosilane Sensor, 0-25 ppm [CDS-7-7BDC36] ( $243.00 ) PS-7 Difluoromethane (R32) Sensor, 0-2000 ppm [CHS-7-7J20R60-CH2F2] ( $753.00 ) PS-7 Dimethylamine Sensor, 0-50 ppm [CDS-7-7BDA40] ( $243.00 ) PS-7 Dimethylamine Sensor, 0-25 ppm [CDS-7-7BDA30] ( $243.00 ) PS-7 Dimethylamine Sensor, 0-15 ppm [CDS-7-7BDAQ0] ( $243.00 ) PS-7 1.4 Dioxane Sensor, 0-5000 ppm [CHS-7-F2Z40Di] ( $790.00 ) PS-7 1.4 Dioxane Sensor, 0-2000 ppm [CHS-7-F2Z60Di] ( $790.00 ) PS-7 Disilane Sensor, 0-25 ppm [CDS-07DS30] ( $243.00 ) PS-7 Disilane Sensor, 0-5 ppm [CDS-07DS10] ( $243.00 ) PS-7 Ethanol Sensor, 0-5000 ppm [CHS-7-F22N40] ( $851.00 ) PS-7 Methanol Sensor, 0-100% LEL [CHS-7-C2M10-CH3OH] ( $668.00 ) PS-7 Methane Selective Sensor (no H2 detect.), 0-10k ppm [CHS-7F1CG0-CH4] ( $535.00 ) PS-7 Methane Selective Sensor (no H2 detect.), 0-1000 ppm [CHS-7F1C70-CH4] ( $535.00 ) PS-7 Methanol Sensor, 0-5000 ppm [CHS-7-F2M40] ( $851.00 ) PS-7 Methanol Sensor, 0-2000 ppm [CHS-7-7J20M60-CH3OH] ( $668.00 ) PS-7 Methyl Bromide Sensor, 0-2000 ppm [CHS-7-F5Z60-CH3BR] ( $851.00 ) PS-7 Methyl Ethyl Ketone (MEK) Sensor, 0-100% LEL [CHS-7-C2Q10-MEK] ( $851.00 ) PS-7 Methyl Ethyl Ketone (MEK) Sensor, 0-1000 ppm [CHS-7-J20Q70-MEK] ( $802.00 ) PS-7 Methyl Ethyl Ketone (MEK) Sensor, 0-2000 ppm [CHS-7-J20Q60-MEK] ( $802.00 ) PS-7 Methyl Fluoride (R41) Sensor, 0-2000ppm [CHS-7-7J20R60-CH3F] ( $535.00 ) PS-7 Methyl Fluoride (R41) Sensor, 0-3000 ppm [CHS-7-F5R90-CH3F] ( $802.00 ) PS-7 Methyl Pyrolidinoner Sensor, 0-2000 ppm [CHS-7-F2Z60-NMP] ( $668.00 ) PS-7 Methyl Chloride Sensor, 0-1000 ppm [CHS-7-F5Z70-CH3CL] ( $802.00 ) PS-7 Methylene Chloride Sensor, 0-1000 ppm [CHS-7-F5Z70-CH2Cl2] ( $802.00 ) PS-7 Methylene Chloride Sensor, 0-2000 ppm [CHS-7F5Z60-CH2Cl2] ( $802.00 ) PS-7 Nitric Oxide Sensor, 0-10 ppm [CDS-07NO20] ( $243.00 ) PS-7 Nitric Oxide Sensor, 0-100 ppm [CDS-07NO50] ( $243.00 ) PS-7 Nitrogen Dioxide Sensor, 0-10 ppm [CDS-7BND20] ( $243.00 ) PS-7 Ethanol Sensor (with Toluene Correlation), 0-5000 ppm [CHS-7-F2N40T] ( $971.00 ) PS-7-03 NF3 Sensor, 0-30 ppm [CDS-7-7BNFR6]; For PS-7-03 units ONLY ( $729.00 ) PS-7 Ethanol Sensor, 0-100% LEL [CHS-7C2N10-C2H60] ( $851.00 ) PS-7-03 NF3 Sensor, 0-100 ppm [CDS-7-7BNF56]; For PS-7-03 units ONLY ( $729.00 ) PS-7 Ethanol Sensor, 0-2000 ppm [CHS-7-F2N60-C2H60] ( $729.00 ) PS-7-03 NF3 Non-Standard Range Sensor, 0-250 ppm [CDS-7-7BNF69]; For PS-7-03 units ONLY ( $1,033.00 ) PS-7 Ethanol Sensor, 0-500 ppm [CHS-7-F9N50-C2H60] ( $1,033.00 ) PS-7 Octane Sensor, 0-2000 ppm [CHS-7-F2Z60OC-C8H18] ( $729.00 ) PS-7 Ethane Sensor (w/less interference to H2/IPA), 0-5000 ppm [CHS-7-F1Z40] ( $668.00 ) PS-7 Octane Sensor, 0-1000 ppm [CHS-7-F2Z70OC] ( $729.00 ) PS-7 Ethane Sensor, 0-5000 ppm [CHS-7-F2Z40] ( $668.00 ) PS-7 Oxygen Sensor, 0-25% vol [COS-70XA0] ( $243.00 ) PS-7 Ethylene Sensor, 0-100% LEL [CHS-7-C2Z10-C2H4] ( $729.00 ) PS-7 Ozone Sensor, 0-1ppm [CDS-7-7BOZ06] ( $243.00 ) PS-7 Ethylene Sensor, 0-2000 ppm [CHS-7-F2Z60-C2H4] ( $851.00 ) PS-7 Pentane Sensor, 0-2000 ppm [CHS-7-F2Z60P] ( $851.00 ) PS-7 Ethylene Oxide (EO) Sensor, 0-2000 ppm [CHS-7-F2Z60EO] ( $821.00 ) PS-7 Pentane Sensor, 0-5000 ppm [CHS-7-F2Z40P] ( $851.00 ) PS-7 Ethylene Oxide (EO) Sensor, 0-5000 ppm [CHS-7-F2Z40EO] ( $851.00 ) PS-7 Phosphine Sensor, 0-1 ppm [CDS-7-7BPH06] ( $243.00 ) PS-7 Fluorine Sensor, 0-5 ppm [CDS-7-07F216] ( $243.00 ) PS-7 Phosphorous Trifluoride Sensor, 0-10 ppm [CDS-07PF20] ( $243.00 ) PS-7 Fluorine Sensor, 0-3ppm [CDS-7-07F2MO] ( $243.00 ) PS-7 Propane LPG Sensor (will not detect CH4), 0-100% LEL [CHS-7-C2A10-LPG] ( $668.00 ) PS-7 Formaldehyde Sensor, 0-200ppm [CHS-7-F9Z90-CH20] ( $1,155.00 ) PS-7 Propyl acetate Sensor, 0-2000 ppm [CHS-7-F2Z60-PA] ( $851.00 ) PS-7 Gasoline Sensor, 0-100% LEL [CHS-7-C2Z10] ( $729.00 ) PS-7 Propyl acetate Sensor, 0-100% LEL [CHS-7-C2Z10-PA] ( $851.00 ) PS-7 Gasoline Sensor, 1000 ppm [CHS-7-F2Z70GL] ( $851.00 ) PS-7 LPG (iso-butane basis) Sensor, 0-100% LEL [CHS-7-C2A10] ( $668.00 ) PS-7 Gasoline Sensor, 2000 ppm [CHS-7-F2Z60GL] ( $851.00 ) PS-7 LPG (Isobutane basis) Sensor, 2000 ppm [CHS-7-F2A60] ( $790.00 ) PS-7 Gasoline Sensor, 5000 ppm [CHS-7-F2Z40GL] ( $851.00 ) PS-7 Propelyene Sensor, 0-2000 ppm [CHS-7-F2Z60-C3H6] ( $535.00 ) PS-7 Germane Sensor, 0-1 ppm [CDS-7-07GH06] ( $243.00 ) PS-7 Propelyene Sensor, 0-100% LEL [CHS-7-C2Z10-C3H6] ( $802.00 ) PS-7 Hexafluorobutadiene Sensor, 0-2000 ppm [CHS-7-7J20Z60-C4F6] ( $753.00 ) PS-7 PGME Sensor, 0-5000 ppm [CHS-7-F2Z40PGME] ( $851.00 ) PS-7 n-Hexane Sensor, 0-200 ppm [CHS-7-F8Z90] ( $943.00 ) PS-7 PGMEA Sensor, 0-5000 ppm [CHS-7-F2Z40PGMEA] ( $851.00 ) PS-7 n-Hexane Sensor, 0-2000 ppm [CHS-7-F2Z60-C6H14] ( $668.00 ) PS-7 Propylene Oxide Sensor, 0-2000 ppm [CHS-7-F2Z60PO] ( $851.00 ) PS-7 Hexane Sensor, 0-100% LEL [CHS-7-C2Z10H-C6H14] ( $729.00 ) PS-7 Silane Sensor, 0-25 ppm [CDS-7-7BSH36] ( $243.00 ) PS-7 Hydrogen Sensor, 0-10,000 ppm [CHS-7-F2EG0] ( $668.00 ) PS-7 Silane Sensor, 0-5 ppm [CDS-7-7BSH16] ( $243.00 ) PS-7 Hydrogen Sensor, 0-1000 ppm [CHS-7F3E70] ( $535.00 ) PS-7 Styrene Sensor, 0-2000 ppm [CHS-7-F2Z60S] ( $851.00 ) PS-7 Hydrogen Sensor, 0-2000 ppm [CHS-7F3E60] ( $535.00 ) PS-7 Sulfur Dioxide Sensor, 0-10 ppm [CDS-7-07SD26] ( $243.00 ) PS-7 Hydrogen Bromide Sensor, 0-10 ppm [CDS-7-7BHB26] ( $243.00 ) PS-7 Sulfur Dioxide Sensor, 0-25 ppm [CDS-7-07SD30] ( $243.00 ) PS-7 Hydrogen Chloride Sensor, 0-25 ppm [CDS-7-7BHC36] ( $243.00 ) PS-7 Toulene Sensor, 0-2000ppm [CHS-7-F2T60-C7H8] ( $851.00 ) PS-7 Hydrogen Chloride Sensor, 0-5 ppm [CDS-7-7BHC16] ( $243.00 ) PS-7 Hydrogen Fluoride Sensor, 0-10 ppm [CDS-7-7CHF26] ( $243.00 ) PS-7 Trans LC Sensor, 0-1000 ppm [CHS-7-F5Z70-TLC] ( $535.00 ) PS-7 Hydrogen Fluoride Sensor, 0-2.5ppm [CDS-7-7CHFD6] ( $243.00 ) PS-7 Hydrogen Selenide Sensor, 0-250 ppb [CDS-7-7BSE76] ( $243.00 ) PS-7 Hydrogen Sensor (will not detect CH4), 0-100% LEL [CHS-7-C2E10-H2] ( $668.00 ) PS-7 Hydrogen Sulfide Sensor, 0-50 ppm [CDS-07HS40] ( $243.00 ) PS-7 Hydrogen Sulfide Sensor, 0-10 ppm [CDS-7-07HS20] ( $243.00 ) PS-7 Hydrogen Sulfide Low-Range Sensor, 0-5 ppm [CDS-7-07HS10] ( $243.00 ) PS-7 Isobutane Sensor, 0-5000 ppm [CHS-7-F2L40] ( $790.00 ) PS-7 Isobutane Sensor, 0-2000 ppm [CHS-7-F2L60] ( $790.00 ) PS-7 Isobutylene Sensor, 0-2000 ppm [CHS-7-F2Z60IB] ( $851.00 ) PS-7 Isopropyl alcohol (IPA) Sensor, 0-2000 ppm [CHS-7F2S60-IPA] ( $790.00 ) PS-7 Isopropyl alcohol (IPA) Sensor, 0-5000 ppm [CHS-7-J20S40-IPA] ( $790.00 ) PS-7 Isopropyl alcohol (IPA) Sensor, 0-100% LEL [CHS-7-C2S10-IPA] ( $790.00 ) PS-7 Methane General Combustible Sensor, 0-100% LEL [CHS-7-C1C10-CH4] ( $668.00 ) PS-7 Methane General Combustible Sensor, 0-2000 ppm [CHS-7F2C60-CH4] ( $668.00 ) PS-7 Methane General Combustible Sensor, 0-5000 ppm [CHS-7F2C40-CH4] ( $668.00 ) PS-7 Trans LC Sensor, 0-2000 ppm [CHS-7F5Z60-TLC] ( $851.00 ) PS-7 Trifluoromethane (R23) Sensor, 0-2000 ppm [CHS-7F5CHF3] ( $535.00 ) PS-7 Vinyl Chloride Sensor, 0-500 ppm [CHS-7F5Z50-VC] ( $851.00 ) PS-7 Xylene Sensor, 0-2000 ppm [CHS-7-F2V60] ( $851.00 ) PS-7 Xylene Sensor, 0-100% LEL [CHS-7-C2V10] ( $802.00 ) ** No PS-7 Sensor / Replacement Unit - NOTE: Sensor Required For Operation ** ( $0.00 )
Lead times vary by item. A shipment/delivery estimate will be provided upon placement of your order. Please contact us to review your delivery requirements before requesting expedited shipping for rush delivery.
Lead times vary by item. A shipment/delivery estimate will be provided upon placement of your order. Please contact us to review your delivery requirements before requesting expedited shipping for rush delivery.
Detectable Gases Document Title Document Size Updated
PS-7 / PS-8 Detectable Gas List (133.42 kB) March 31, 2025 View
More Information Brands New Cosmos Detection Points 1 point Display Back-Lit LCD Intrinsically Safe No Detection Principle Electrochemical Manufacturer New Cosmos Product Type Gas Detectors Product Use Fixed Detection Range Varies by Gas (down to ppb), %LEL, PPM, %VOL. Event Log Storage YES Battery NO Power Requirements 24V Alarms Audible & Visual Operation Temperature 40°F - 104°F | 4°C - 40°C
