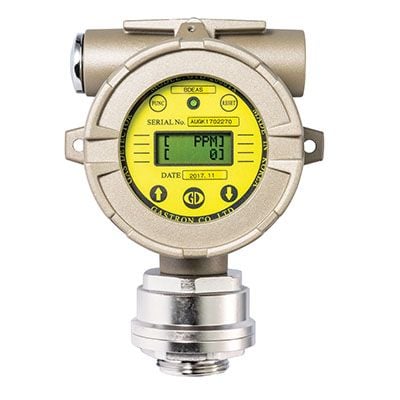

GTD-2000Tx Explosion Proof Toxic Gas Detector

Contact Us
In stock

The GT2000TX Explosion-Proof Toxic Gas Monitor provides comprehensive monitoring of toxic and oxygen gas hazards in potentially explosive atmospheres (both indoors and outdoors). Users can modify detector operation using the LCD without ever needing to open the unit. This enables one-man, non-intrusive operation and reduces maintenance time and costs. This unit can be easily configured into existing installs with other manufacturer detectors and comes equipped with analog and digital protocols.

Features include:

· Continuous detection of toxic gases and oxygen in explosion hazardous area with flame proof structure
· Self diagnosis function with built-in Microprocessor
· Excellent selectivity by adapting detection principle only for toxic gases & oxygen
· Superior performance for detecting toxic gases below TLV
· Multi functions and high quality with low cost of ownership
· Built-in back light LCD or OLED display
· Easy configuration of monitoring system by HART communication
· Auto calibration and program setting with a magnet bar
· 4-20mA (Current source or Sink) output signal
· Calibration and maintenance by one individual
· With the alarm unit (GTL-100):
- Normal - Green LED
- Alarm - Red LED, Buzzer(95 dB)
- Trouble - Yellow LED

GTD-2000TX housings are aluminum (standard) with an option to upgrade to stainless steel. Please click here for replacement sensors only. Contact us for additional target gas availability.

Gas Name Gas Range
Ammonia NH3 0-75, 150 ppm
Arsine AsH3 0-0.3 ppm
Boron Trichloride BCl3 0-15 ppm
Boron Trifluoride BF3 0-9 ppm
Bromine Br2 0-1 ppm
Carbon Monoxide CO 0-150, 300 ppm
Chlorine Cl2 0-3, 10, 30 ppm
Chlorine Trifluoride ClF3 0-0.3 ppm
Diborane B2H6 0-0.3 ppm
Dichlorosilane DCS 0-15 ppm
Disilane Si2H6 0-15 ppm
Ethylene Oxide EO 0-30 , 100 ppm
Fluorine F2 0-3 ppm
Germane GeH4 0-1 ppm
Hydrogen H2 0-2000 ppm
Hydrogen Bromide HBr 0-9 ppm
Hydrogen Chloride HCl 0-10 , 30 ppm
Hydrogen Cyanide HCN 30 ppm
Hydrogen Fluoride HF 0-9 ppm
Hydrogen Sulfide H2S 0-10, 30 ppm
Nitrogen Dioxide NO2 0-15, 30 ppm
Nitrogen Monoxide NO 0-100 ppm
Oxygen O2 0-25 & 30% Vol.
Ozone O3 0-1 ppm
Phosgene COCl2 0-1 ppm
Phosphine PH3 0-1 ppm
Phosphorus Oxychloride POCl3 0-15 ppm
Phosphorus Trichloride PCl3 0-15 ppm
Propylene Oxide CH3CHCH2O 0-100, 200 ppm
Silane SiH4 0-15 ppm
Silicon Tetrachloride SiCl4 0-15 ppm
Sulfur Dioxide SO2 0-10, 30 ppm
Sulfur Trioxide SO3 0-10, 30 ppm
Titantium Tetrachloride TiCl4 0-15 ppm
Tungsten Hexafluoride WF6 0-9 ppm
More Information
Detection Points1
DisplayBack-Lit LCD
Intrinsically SafeYes
Detection PrinciplePID
Product TypeGas Detectors
Product UseFixed
Detection RangePPM
Power Requirements24V
Operation Temperature-40°F to +176°F (-40°C to +80°C)
