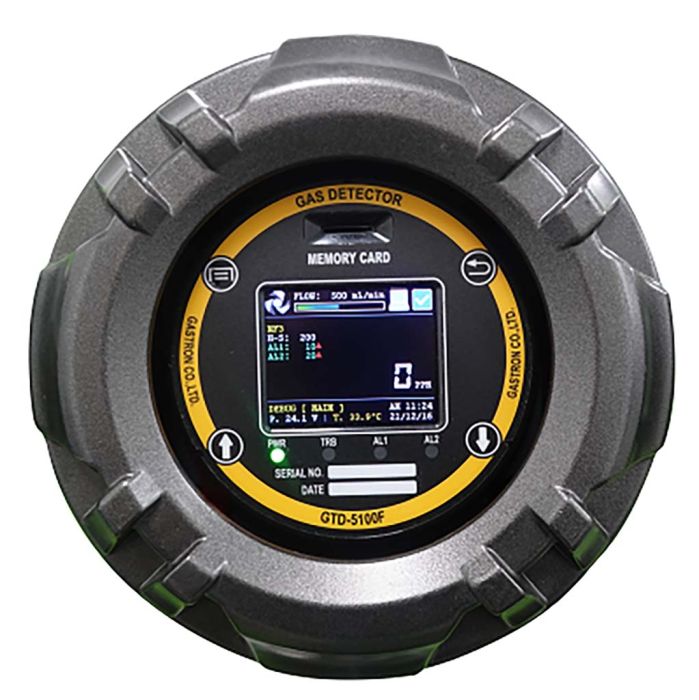

GTD-5100FN Explosion Proof Infrared Gas Detector
The GTD-5100FN Explosion-Proof Infrared Gas Detector utilizes fast, accurate NDIR technology for continuous gas leak monitoring in potentially explosive atmospheres (both indoors and outdoors).
Features include:
· Built-in explosion-proof structure, installed in dangerous area of gas leakage, continuously detecting gas
· Application of anti-malfunction algorithm to interference gas (Ethanol, FC-3283, IPA)
· Fast response speed by applying new infrared measurement principle
· Built-in high-performance pump to detect gas leakage quickly
· Built-in automatic flow control with flow sensor
· Built-in self-diagnosis function
· Application of proven detection principle with stable quality and service life
· Parameter setting of color graphic LCD and 1: 1 conversation method using magnet bar
· 4-20mA (Current source or Sink) output
· Easy to install monitoring system by RS-485 Modbus and PoE communication
· Two-stage alarm, one fault indication and relay contact output
· Built-in Data & Event log function
· Calibration and maintenance by one individual
· UL listed
| Brands | Gastron |
|---|---|
| Detection Points | 1 |
| Display | Graphic LCD |
| Detection Principle | Infrared |
| Manufacturer | GasTron |
| Product Type | Fixed Gas Detectors |
| Product Use | Fixed |
| Detection Range | PPM, %LEL |
| Event Log Storage | Yes |
| Battery | No |
| Alarms | Audible & Visual |
| Operation Temperature | -4°F to 131°F (-20°C to 55°C) |
